Industrial Chilling Plant

Efficient and Reliable Process Cooling :

Himalaya (Wide Cool) manufactures over 35 standard chiller models covering a wide range of capacities to meet your cooling requirements. If one of these standard models does not match your specific application requirements. Himalaya (Wide Cool)’s experienced machine designers can customize a standard chiller model that will.

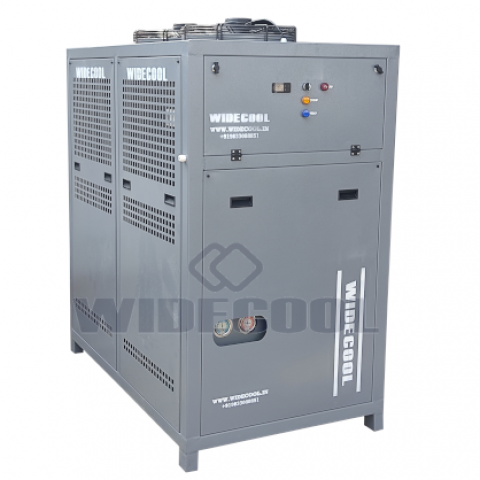

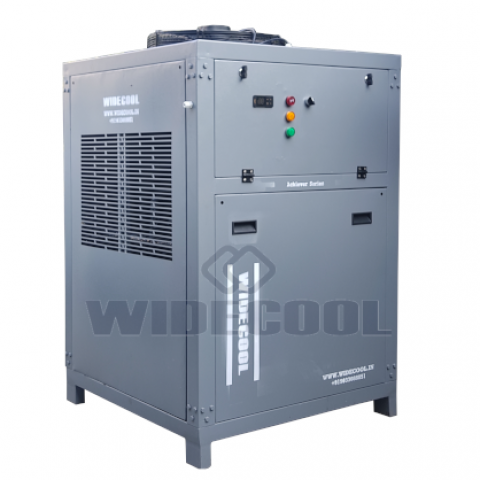

Himalaya(WideCool)’s Achiever  Series Portable Chillers are refrigeration units coupled with an integral fluid circulation system that range in cooling capacity from 1/4 to 40 tons. These units are used to cool fluids to support industrial process cooling applications requiring a fluid temperature range from -6°C to 4°C.

Maximum Portable Chillers are easily installed and operated requiring only a source of electrical power, coolant fluid, and a process load to be temperature controlled. Units are placed inside the production facility and are available in Air-Cooled or Water-Cooled* models.

These chillers can be configured with a remote, air-cooled condenser to decrease heat within your facility.

Portable Chillers are delivered fully charged with a non-ozone-depleting refrigerant, tested, and ready to run right out of the box.† All control instrument information is conveniently located permitting instant diagnosis of performance.

Over 1,000 Chiller units have been put into service worldwide, demonstrating their wide acceptance.

* Water-cooled models require an external water supply source for operation.

† Units with remote condensers are not portable and require field piping and charging.



We thought of everything …And Then Some.

The Himalaya-WidecoolAchiever ® SeriesPortable chiller was developed using our 360°+1 design philosophy, which means every detail of the product is meticulously evaluated from every angle. We consider the work that goes into installing and servicing our products, as well as how we can deliver the very best Operator experience. And then we take it a step further. That’s 360°+1. And that’s why you can count on your Himalaya- WidecoolAchiever SeriesPortable Chillers to bring you and your industry years of comfort.



Peace of mind: Our Portable Chillers include a list of features that ensure performance that will keep you relying on Himalaya-WIDECOOL for years to come for your Business comfort. We also offer some of the best warranties in the industry.

Reliability: We’re serious about the quality of all of our products. That’s why our Portable Chillers are engineered with technology that provides unmatched reliability and durability for years of worry-free operation.

Achiever Series: Portable Chillers are supplied with a microprocessor control instrument that monitors and controls all aspects of the chiller functions assuring accurate and dependable operation. The control is designed to support the specific and unique requirements of process cooling in an industrial environment.



Durably Constructed With Quality Components

Construction

• Heavy-duty frame

• Easy to access enclosure panels

• Durable casters

RUGGED REFRIGERATION CIRCUIT

• Hermetic, scroll, or digital scroll compressors

• Environmentally-friendly refrigerant

• High-efficiency evaporators

• High & Low refrigerant pressure limit switches

• Standard High & Low refrigerant pressure gauges2-40 ton models



AIR-COOLED UNITS

• Generously sized finned tube construction with fans or blowers for air movement.

• Remote outdoor condenser (RC models)



WATER-COOLED UNITS

• High-efficiency cleanable condenser

• Water regulator valve to maintain proper refrigeration pressures



HIGH-Performance water circuit

• Pumps produce ideal water flow promoting heat transfer

• Lifetime, non-rusting, vented, water reservoir

• All non-ferrous wetted surfaces

• Standard auto water make-up on 4-40 ton models

• Standard process pressure gauge on 2-40 ton models



OPTIONAL

ALARMS

• High water temperature and low water pressure audible or audible/visual alarm

OVERHEAD PIPING KIT

• Prevents the chiller reservoir from flowing on shutdown due to backflow from overhead piping

REVERSE FLOW CIRCUIT

• Reverse flow circuits are used on open processes where an external reservoir is used

AUTOMATIC LOW-FLOW BYPASS

• Maintain proper evaporator flow when process flow is below the minimum evaporator flow requirementLarger Process Pumps

• Optional pumps enable the chiller to have greater flow and/or pressure electrical system options

• UL508A enclosed electrical panel

• Emergency stop operator

• Control instrument upgrades

• Disconnect switch Condenser protection

• With screen and air filter bag filter or strainer

• Protects water system from debrisCCPR valve



Specification

·         PD = Positive displacement pump ; C = Centrifugal Pump

·         Tons or kilowatts capacity at 12,000 BTU/hr/ton @ 50? F LWT, 95? F ambient and, 115? F condensing for air-cooled models; 85? F condensing water and 105?F condensing for water-cooled  models. The Minimum recommended operating temperature when no glycol is used is 48°F.

         R = hermetic reciprocating. SC = hermetic scroll.

·         DSC = Copeland Digital Scroll. TSC = Tandem Scroll.

·         B = brass. SS = stainless steel.

·         Design ambient conditions. Loss of capacity and/or difficulty operating will occur at higher ambient Amps shown are approximate and for standard units. Custom configurations or options may change power requirements.

·         Consult the factory before installing.

·         Selection of certain options may change dimensions, weight, and amps required.

·         Confirm with the factory before starting construction.

·         Product innovation and improvement is our constant goal,

All features and specifications are subject to change without notice or liability.
