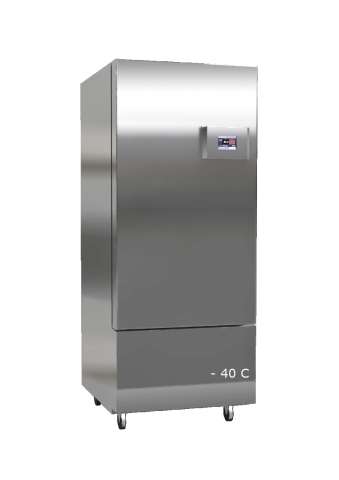

Plasma Freezer (-40 C)

WIDECOOL Plasma Freezer Provides an ideal freezing environment for the preservation of Plasma, and test samples. The instruments outer body is made of heavy gauge Mild steel duly powder coated with stainless Steel (304) Inner Chamber. This unit Designed to maintain a stable and uniform temperature of up to-40.0°C, Vertical and Horizontal with four different sizes. The user-friendly design includes a built-in Stainless steel insulated inner door, and simple calibration is possible via the control panel. This coupled with a visual and audible alarm system, ensures that your samples are both safe and secure, but also easy to access when you need them.

Standard Equipment Features

· Temperature Range – 20 °C to  – 40 °C

· Temperature Accuracy  ± 3 °C

· Temperature Uniformity  ± 10 °C

Interior & Exterior chamber made of Stainless Steel 304

· Stainless steel trays for sample storage

· Inner Sub-doors to avoid temperature loss

· Non-CFC, high density, Polyurethane Foam insulation of 150mm thickness

· Cascading refrigeration system

· Non-CFC, Non-HCFC eco-friendly refrigerants

· Safety Refrigeration system with over-load protectors and MCB

Auto defrost system for avoiding ice formation in the chamber

· Heater line around the front of the cabinet to prevent moisture condensation

· PLC-based controlling system with Touch Screen Display

· Ethernet-based communication

· Audio-visual alarms for deviations

· Complete with Operations & Maintenance Manual

· Castor wheels for easy movement

· Power Supply: 230 Volts 50 Hz main supply.

Optional

· Door Access System

· Mobile Alert System
