Refrigerated Dehumidifier


Send Inquiry
Discription:

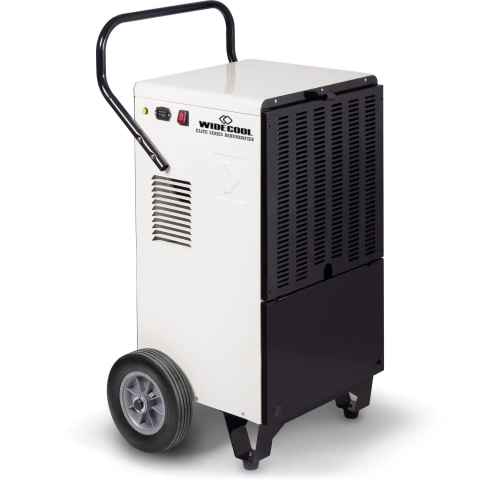

Elite Series Refrigerated Dehumidifiers



Room dehumidifiers are used to control the humidity in covered areas for the tool and production rooms, manufacturing of medicine, ammunition and storage of food grains, sugar, fertilizer etc. If these places are not dehumidified, the moisture in the air will deteriorate the quality of the product. The humidity in the air causes formation of lumps and rusts and thereby making the product unfit for use.



Wide Cool Refrigeration offers ELITE SERIES refrigeration based room dehumidifiers in table mounting type models with high efficiency and low maintenance cost. The humidity control from 100% RH to 40% RH could be provided as per customer requirements.





Model

WCDH 50 Elite

WCDH 100  Elite

Moisture Extraction Capacity

@30° C & 80% RH 50 Liters /day

@30° C & 80')% RH 100 Liters /day

Moisture Extraction Capacity

@23° C & 60% RH 25 Liters / day

@23° C & 60% RH 50 Liters / day

Moisture Extraction Capacity

400 Sq Ft/4000 ft3/ 130m3

800 Sq Ft/8000 ft3/ 266m3

Coverage Area (A.C. w/o AHU)

Ft 2000 ft3 / 55m3

Ft 4000 ft3 / 113m3

Body Material

SS 304

SS 304

Humidity Control & Display

Up to 40% - Digital 25%

Up to 40% - Digital 25%

Water Collection Tank

10 Liter (S.S 304 Grade)

20 Lite (S.S 304 Grade)

Water Outlet Connection

1/2" BSP

1/2" BSP

Compressor

Recip –

Recip -

Refrigera

R 22

R 22

Air Flow

1200 m3 /hr

1600 m3 /hr

Power

220V AC, 50Hz

440 / 220V AC, 50Hz

Noise Level

60 dB

60 dB

Direct Drain Facility

Yes

Yes

Prefilter

Yes

Yes

Castor Wheel

Yes

Yes

Dimension(inch) (L x D x H)

18 x 20 x 32

17 x 21 x 38.5





Model

WCDH 150  Elite

WCDH 200  Elite

Moisture Extraction Capacity

@30° C & 80% RH 150 Liters / day

@30° C & 80% RH 200 Liters / day

Moisture Extraction Capacity

@23° C & 60% RH 75 Liters / day

@23° C & 60% RH 100 Liters / day

Moisture Extraction Capacity

1200 Sq Ft/12000 ft3 / 340m3

1600 Sq Ft / 16000 ft3 / 340m3

Coverage Area (A.C. w/o AHU)

Ft 6000 ft / 170m3

Ft 8000 ft3 / 226m3

Body Material

SS 304

SS 304

Humidity Control & Display

Up to 40% - Digital 25%

Up to 40% - Digital 25%

Water Collection Tank

25 Liter (S.S 304 Grade)

25 Liter (S.S 304 Grade)

Water Outlet Connection

1/2" BSP

1/2" BSP

Compressor

Recip -

Recip -

Refrigera

R 22

R 22

Air Flow

1700 m3 /hr

2200 m3 /hr

Power

440 AC, 50Hz

440 AC, 50Hz

Noise Level

60 dB

60 dB

Direct Drain Facility

Yes

Yes

Prefilter

Yes

Yes

Castor Wheel

Yes

Yes

Dimension(inch) (L x D x H)

21.5 x 20.5 x 39

21.5 x 22.5 x 41



Applications:

Healthcare ; Pharma ; R & D ; Hotel ; Warehousing ; printing ; food ; museum & art galleries ; defense ; painting bath an painting industry



Features

·         Made in INDIA since 1985

·         Blue fins evaporator and condenser

·         Most energy efficient dehumidification

·         Easy to use digital humidity controller which displays room humidity

·         Dependable and durable modular metal body

·         Light weight for easy portability.
